BD95W Grab Crane

Quantity:
  • BD95W

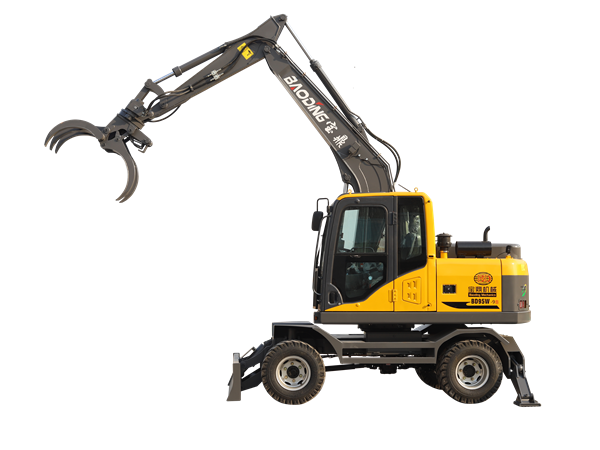

BD95W Grab Excavator

Keywords: grab excavator, wood grab, wheel grab
Main specifications:
Model: BD95W
Engine
Engine brand Yuchai
Engine type EFI, China III standard
Engine power 65 KW (55 KW)
Engine speed 2400 rpm (2200 rpm)
Hydraulic system Imported variable plunger pump
Air conditioner cold & hot wind
Dimensions
Total length 6560 mm
Total width 2130 mm
Total height 2850 mm
Boom length 3600 mm
Stick length 2400 mm
Wheel base 2130 mm
Wheel Track 2330 mm
Blade width 2020 mm
Blade height 490 mm
Counter-weight ground clearance 1005 mm
Min.ground clearance 280 mm
Gripper size 1450*700*1300 mm
Oppening size of gripper 1450 mm
Specifications
Walking speed 35 km/h
Slewing speed 12 rpm
Working pressure 21 pa
Rated flow 154 L/min
Rated displacement 71 ml/r
Max. traction 43.2 KN
Max. torque 250 N.m/1800 rpm
Grade ability 30°
Tire model 825-16
Max. dump height 5400 mm
Max. loading range 7964 mm
operation weight 9000 kg±10%

Baoding brand multi-function wheel wood grabber is a multi-function and practical special operation vehicle with grabbing function as the main function and supplemented by other functions. The main features of this product are heavy lifting, high snatch, sufficient power, low fuel consumption, fast vehicle operation speed and high reliability. At present, this series product is widely used in agriculture, forestry, water conservancy, energy, transportation and construction engineering.
If you want more information, photos, price of BD95W wheel grab excavator, please contact us or send an inquiry.
