XCMG 30 ton right hand drive truck crane QY30KA_Y

XCMG Right Hand Drive 30 ton truck crane model QY30KA_Y
  • QY30KA_Y

  • XCMG

  • 30 ton

  • right hand drive

  • 34 m

  • 47.8 m

XCMG Right Hand Drive 30  ton truck crane
Model: QY 30 K A_Y
Main specifications:
Dimension Unit QY30KA_Y
Overall length mm 12800
Overall width mm 2500
Overall height mm 3890
Total weight in travel kg 30000
Front two axle load kg 5750
Rear two axle load kg 9250
Power of engine
Engine model
Engine rated power kW/(r/min) 204/2200
Engine rated torque N.m/(r/min) 1104/1400
Specifications in Travel
Max. travel speed km/h 80
Min. turning diameter m 22
Min. ground clearance mm 275
Approach angle ° 20
Departure angle ° 16
Max. grade ability % 40
Fuel consumption for 100km L ≈37
Main performance
Max. rated total lifting capacity t 30
Min. rated working radius mm 3000
Turning radius at turntable tail m 3.24
Max. lifting torque kN.m 1103
Base boom m 10.8
Fully extended boom m 34
Fully extended boom+jib m 47.8
Longitudinal outrigger span m 5.14
Lateral outrigger span m 6.1
Working speed
Boom luffing time s 35
Boom full extension time s 55
Max. swing speed r/min 2.5
Max. speed of main winch (single rope) (no load) m/min 130
Max. speed of aux. winch (single rope) (no load) m/min 130
If you want more information like load chart, photos, price of XCMG 30  ton right hand drive truck crane QY 30KA_Y , please contact us or send an inquiry.

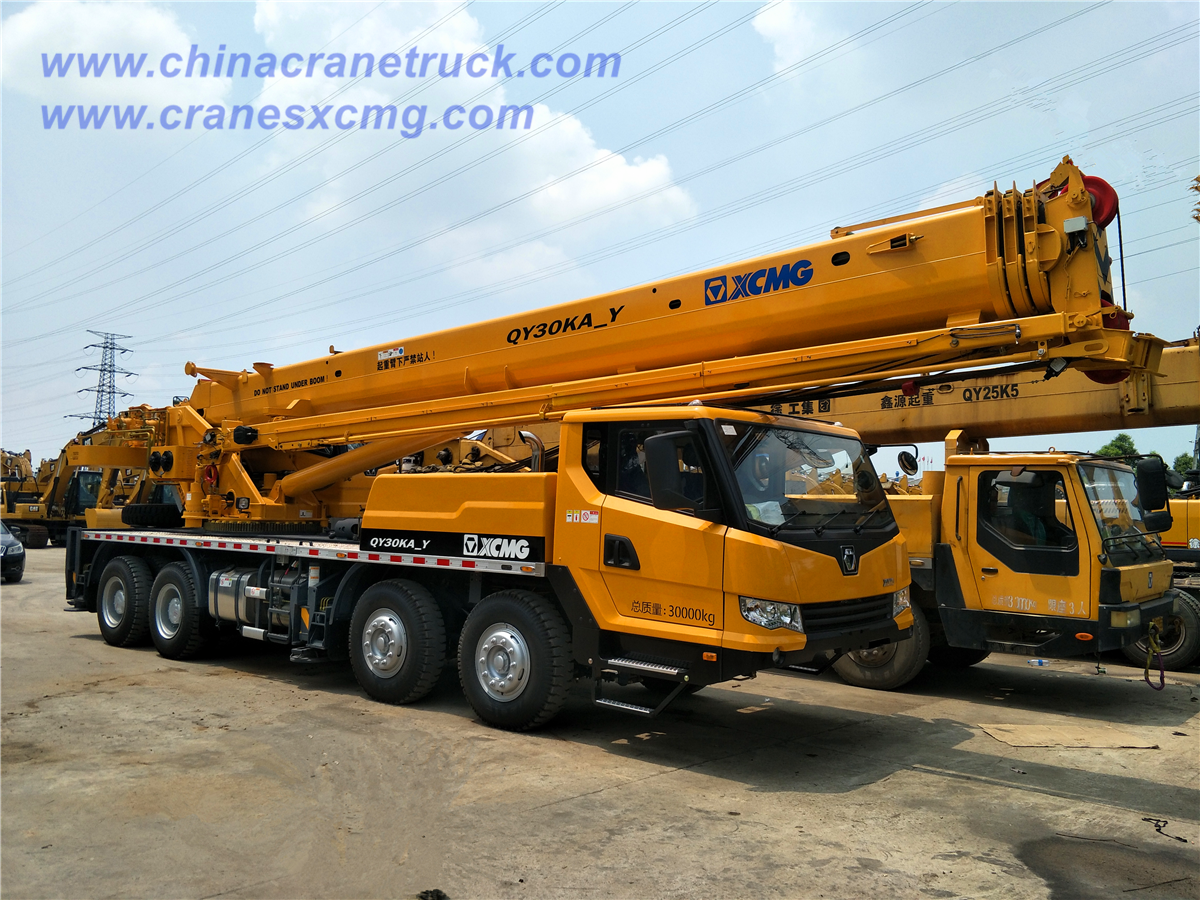

XCMG 30T RHD truck crane QY30KA_Y
