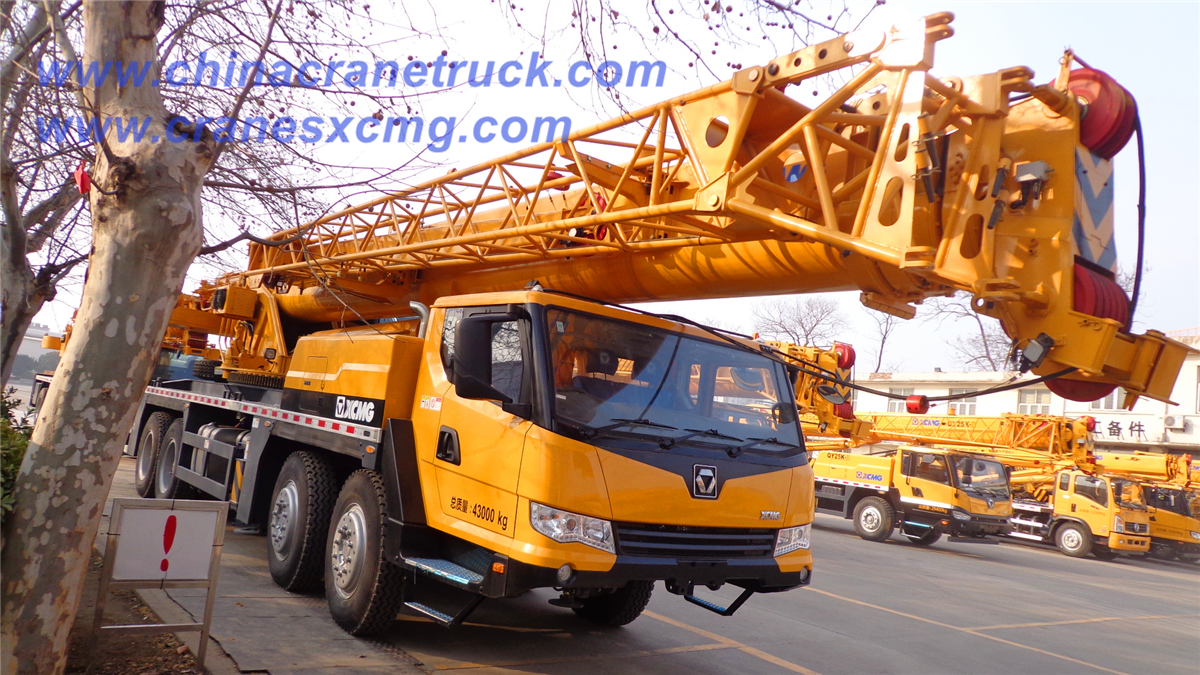

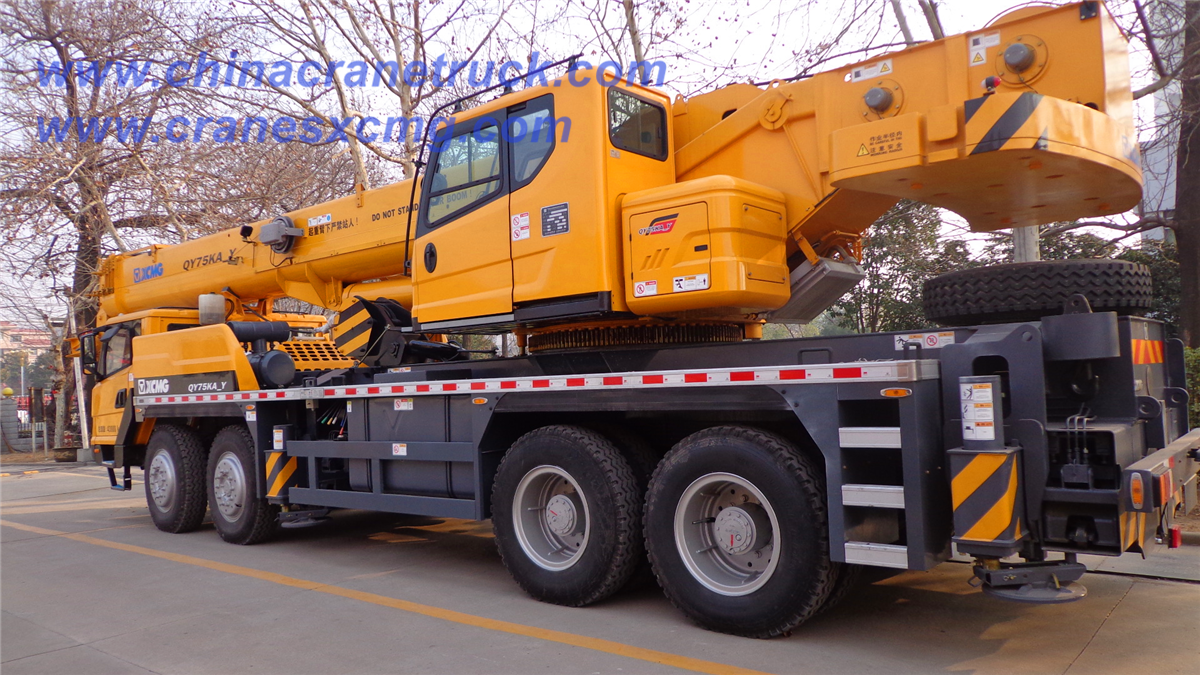

QY75KA_Y
XCMG
75 ton
right hand drive
44.2 m
59.4 m
| Dimension | Unit | QY75KA_Y |
| Overall length | mm | 14030 |
| Overall width | mm | 2800 |
| Overall height | mm | 3700 |
| Weight | ||
| Total weight in travel | kg | 43000 (without 1t vice counterweight） |
| Front axle load | kg | 17000 |
| Rear axle load | kg | 26000 |
| Power of engine | ||
| Engine model | | WD615.338 |
| Engine rated power | kW/(r/min) | 276/2200 |
| Engine rated torque | N.m/(r/min) | 1500/1600 |
| Specifications in Travel | ||
| Max. travel speed | km/h | 80 |
| Min. turning diameter | m | 24 |
| Min. ground clearance | mm | 327 |
| Approach angle | ° | 21 |
| Departure angle | ° | 14 |
| Max. grade ability | % | 40 |
| Fuel consumption for 100km | L | 45 |
| Main performance | ||
| Max. rated total lifting capacity | t | 75 |
| Min. rated working radius | m | 3000 |
| Turning radius at turntable tail | m | 3.55 |
| Max. lifting torque | kN.m | 2303 |
| Base boom | m | 11.8 |
| Fully extended boom | m | 44.2 |
| Fully extended boom+ jib | m | 59.4 |
| Longitudinal outrigger span | m | 6.2 |
| Lateral outrigger span | m | 7.6 |
| Working speed | ||
| Boom luffing time | s | 55 |
| Boom full extension time | s | ≤105 |
| Max. swing speed | r/min | ≥2.0 |
| Max. speed of main winch (single rope) (no load) | m/min | ≥130 |
| Max. speed of aux. winch (single rope) (no load) | m/min | ≥108 |
