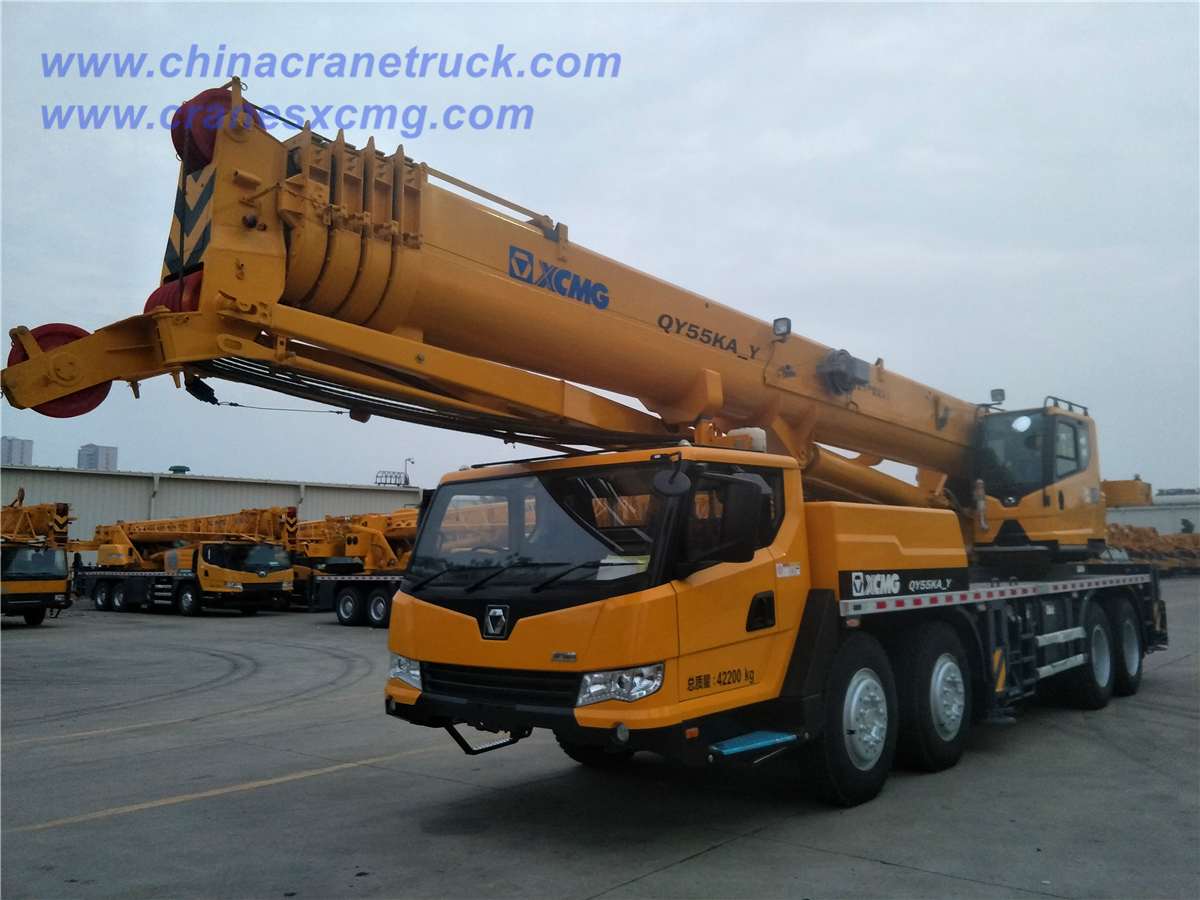

QY55KA_Y
XCMG
55 ton
right hand drive
43.5 m
59.5 m
| Category | Item | Unit | Parameters | |
| Dimensions | Overall length | mm | 13930 | |
| Overall width | mm | 27800 | ||
| Overall height | mm | 3660 | ||
| Wheel base | Axle 1、2 | mm | 1470 | |
| Axle 2、3 | mm | 4300 | ||
| Axle 3、4 | mm | 1350 | ||
| Track | Front wheel | mm | 2304 | |
| Rear wheel | mm | 2075 | ||
| Weight | Dead weight in travel state | kg | 42200 | |
| Axle | Axle 1、2 | kg | 16200 | |
| Axle 3、4 | kg | 26000 | ||
| Power | Engine rated output | | WD615.338 | |
| Engine rated torque | kw/(r/min) | 276/2200 | ||
| Engine rated torque | N.m/(r/min) | 1500/（1100～1600） | ||
| Engine Turning Speed | r/min | 2200 | ||
| Travel | Travel speed | Max. Travel speed | km/h | 85 |
| Min. travel speed | km/h | 2～3 | ||
| Turning diameter | Min. tuning diameter | m | 24 | |
| Min. tuning diameter at boom tip | m | 29.2 | ||
| Min. ground clearance | mm | 327 | ||
| Approach angle | ° | 18 | ||
| Departure angle | ° | 15 | ||
| Brake distance（at speed 30km/h） | m | ≤10 | ||
| Max. Grade ability | % | 42 | ||
| Category | Item | Unit | Parameters | |||
| Lifting performance | Max. Total rated lifting load | t | 55 | |||
| Min. rated working radius | m | 3 | ||||
| Turning radius at swing table tail | mm | 3800 | ||||
| Max. Load moment | Base boom | KN.m | 2009 | |||
| Full-extend boom | KN.m | 1113 | ||||
| Full-extend boom & jib | KN.m | 736 | ||||
| Outrigger extension distance | Longitudinal | m | 6.1 | |||
| Lateral | m | 7.1 | ||||
| Lifting height | Base boom | m | 11.5 | |||
| Full-extend boom | m | 44 | ||||
| Full-extend boom & jib | m | 58.1 | ||||
| Boom length | Base boom | m | 11.4 | |||
| Full-extend boom | m | 43.5 | ||||
| Full-extend boom & jib | m | 59.5 | ||||
| Jib angle | ° | 0、15、30 | ||||
| Working speed | Boom elevating time | Telescopic | S | 40 | ||
| shrink | S | 180 | ||||
| Boom elevating time | Telescopic | S | 90 | |||
| shrink | S | 180 | ||||
| Max. Slewing speed | r/min | 2 | ||||
| Outriggers speed | Horizontal | Telescopic | S | 35 | ||
| shrink | S | 30 | ||||
| Vertical | Telescopic | S | 40 | |||
| shrink | S | 35 | ||||
| Hoisting speed (Single rope 4th layer) | Main winch | Full load | m/min | 85 | ||
| No load | m/min | 130 | ||||
| Auxiliary winch | Full load | m/min | 85 | |||
| No load | m/min | 130 | ||||
| Outside cabin | dB（A） | ≤122 | ||||
| Inside cabin | dB（A） | ≤90 | ||||
